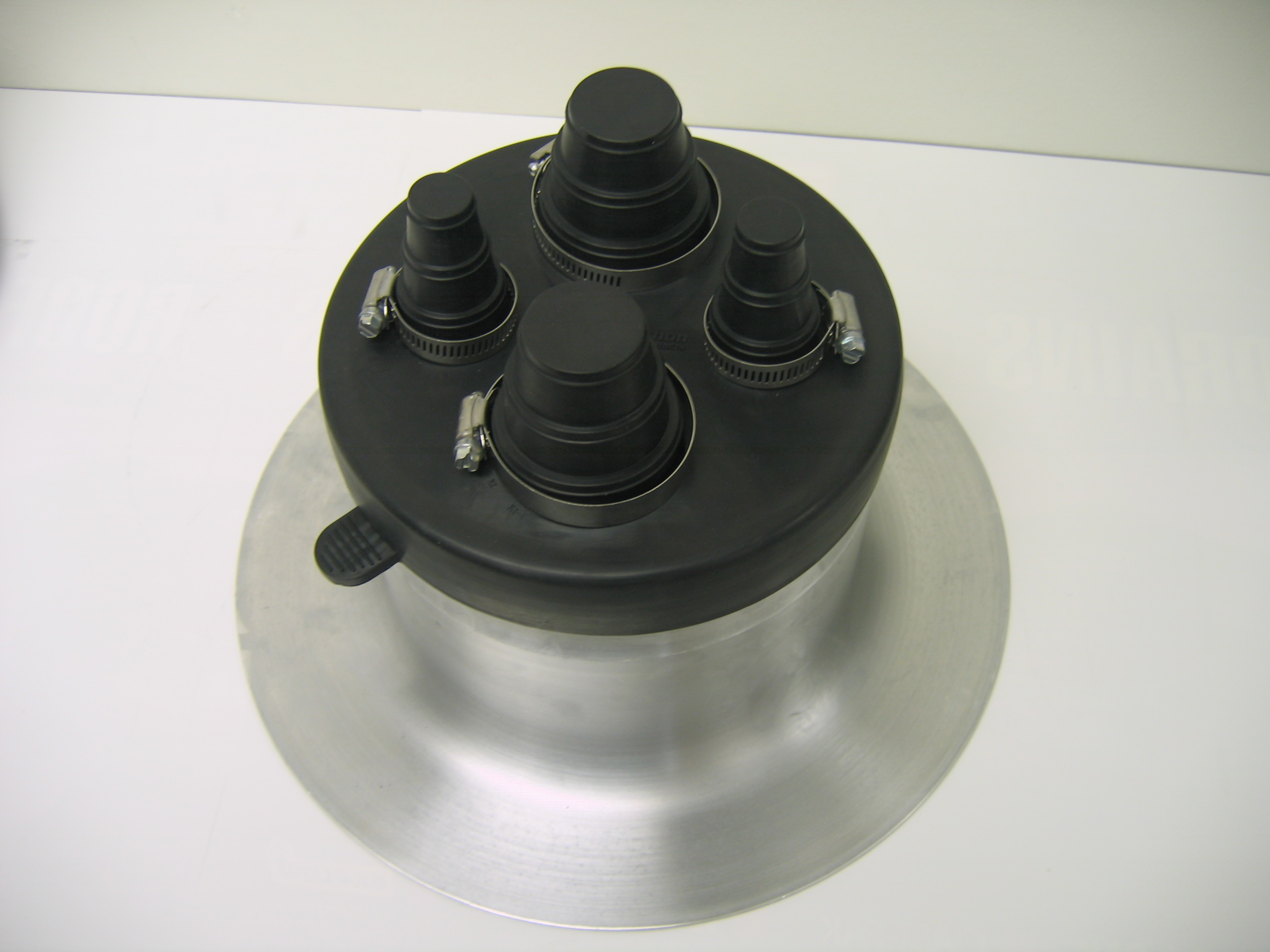

The Universal Mara-Boot provides a permanent watertight and maintenance free means for penetrating roof systems. The Mara-Boot is able to be used on all types of roof systems and replaces using pitch pans. Made from EPDM rubber caps and a spun aluminum base, the Mara-Boot eliminates roof leaks from roof penetrations.

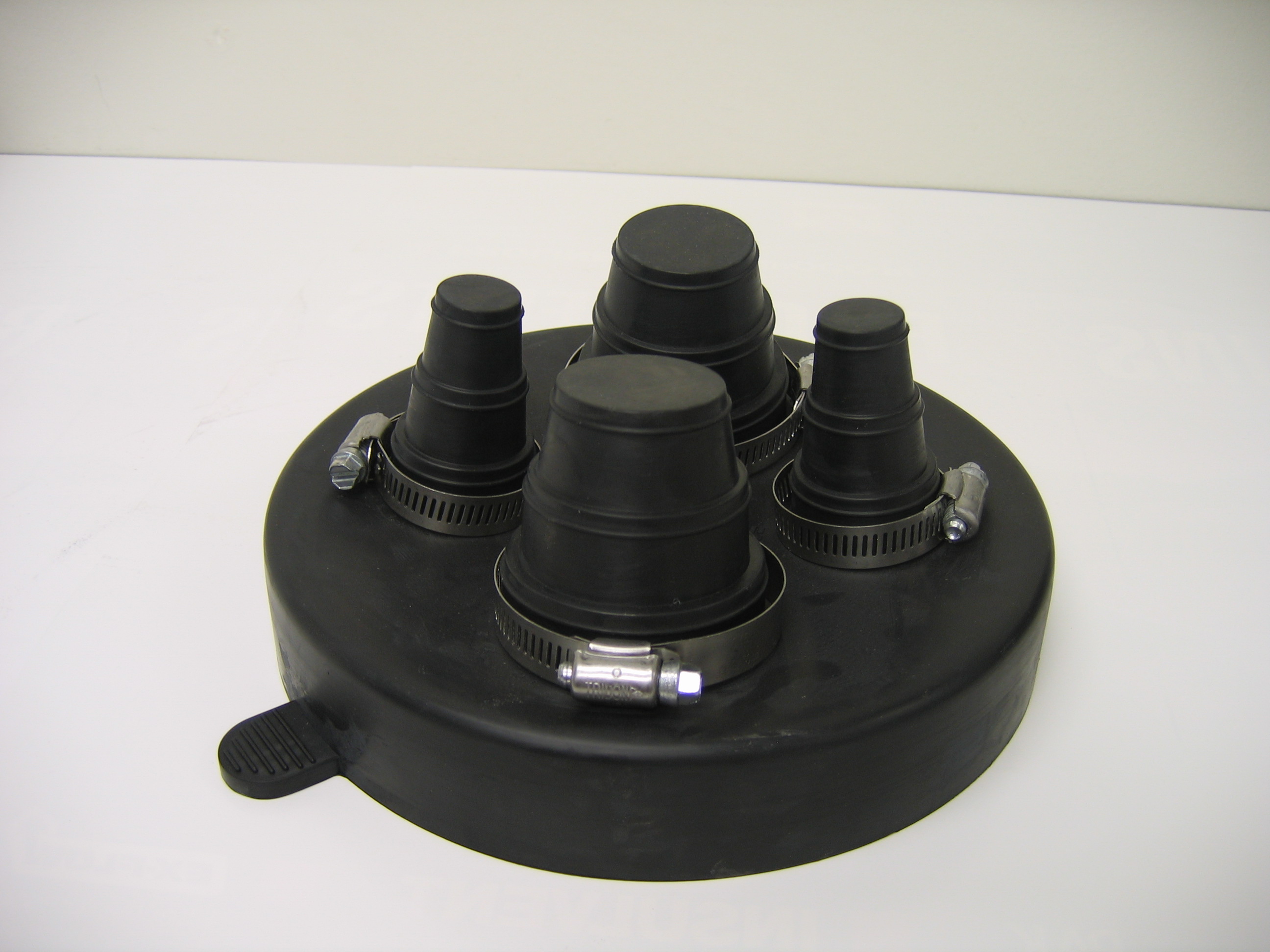

The EPDM Cap is made for maximum resistance to weathering, ozone, UV and extreme hot and cold temperatures. The caps are mechanically sealed to dual beads on the bases and grooves on the inside of the EPDM cap.
Each Cap accommodates two (2) 1/4″, 1-1/2″, 2″ and two (2) 3/8″-1/2″, 3/4″, 1″ pipe sizes. The cap can be trimmed to fit any penetration, from electrical to plumbing, and snugged tight using the 4 supplied stainless steel clamps.
Flange Diameter: 14″
Stack Diameter: 8″
Stack Height: 6″
Total Height (with Boot): 9″
