Leister Varimat 500

Leister Varimat 500 Welder

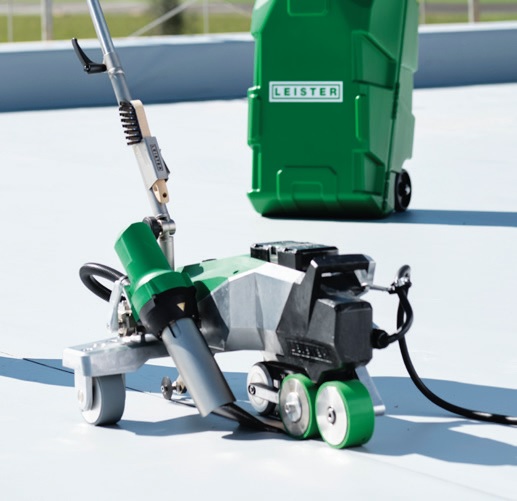

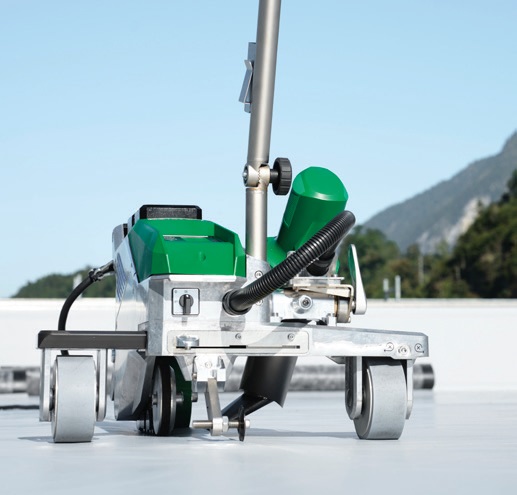

The all new Leister VARIMAT 500 offers increased joining pressure for constant process security and an adjustable transport axle for balanced handling, consistent machine tracking and operational flexibility.  Now polymer roofing membranes can be welded more rapidly, resulting in lower cost. Also, users appreciate its streamlined ergonomics and its east of use. Key Benefits * Monitored Welding and LED work light * Innovative nozzle engagement mechanism * Welding speeds of from 3.2 to 39 ft/min * Robust ergonomic rolling storage case with handle * Height and angle of guide-bar(handle) can be adjusted easily. * Green air dam belt keeps the hot air in the welded seam. * For all thermoplastic roofing membranes *  Roofmaster is your Sales & Service source for Leister, with 5 Authorized Sales & Service locations across the country!

Technical Data For overlap welding of PVC-P-, PE-, ECB-, EPDM-, CSPE- and TPO-roofing membranes.

Width of welding seam 1-5/8" (40mm).

Welding speed up to 39ft/min. depending on material.

Maintenance free blower, no brushes to replace.

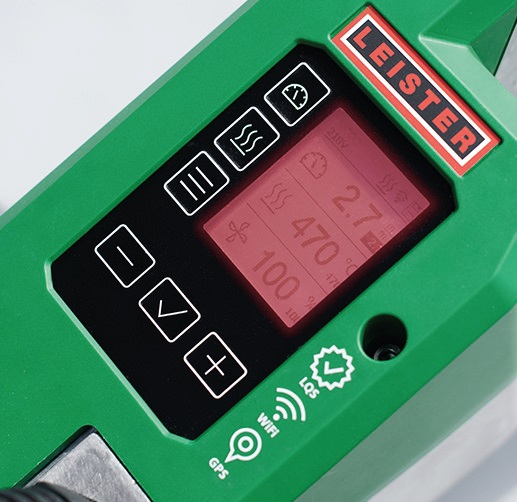

User friendly display with "e-Drive (press and turn control) to recall preset and saved welding settings.

Voltage V ~ 230

Power consumption W 3680

Frequency Hz 50/60

Temperature F 212-1148, steplessly controlled

Drive ft/min. 2.3-39, closed loop system for continuous welding speed.

Welding pressure N 190

Air flow % 50-100 adjustable Pressure stat. Pa 5000 (50 mbar) Emission level LpA (dB) 67

Size 23.8" long, 13.1" wide, 14.6" tall. Weight 82.7lb with 5 m cord

Test signs: CCA certificated

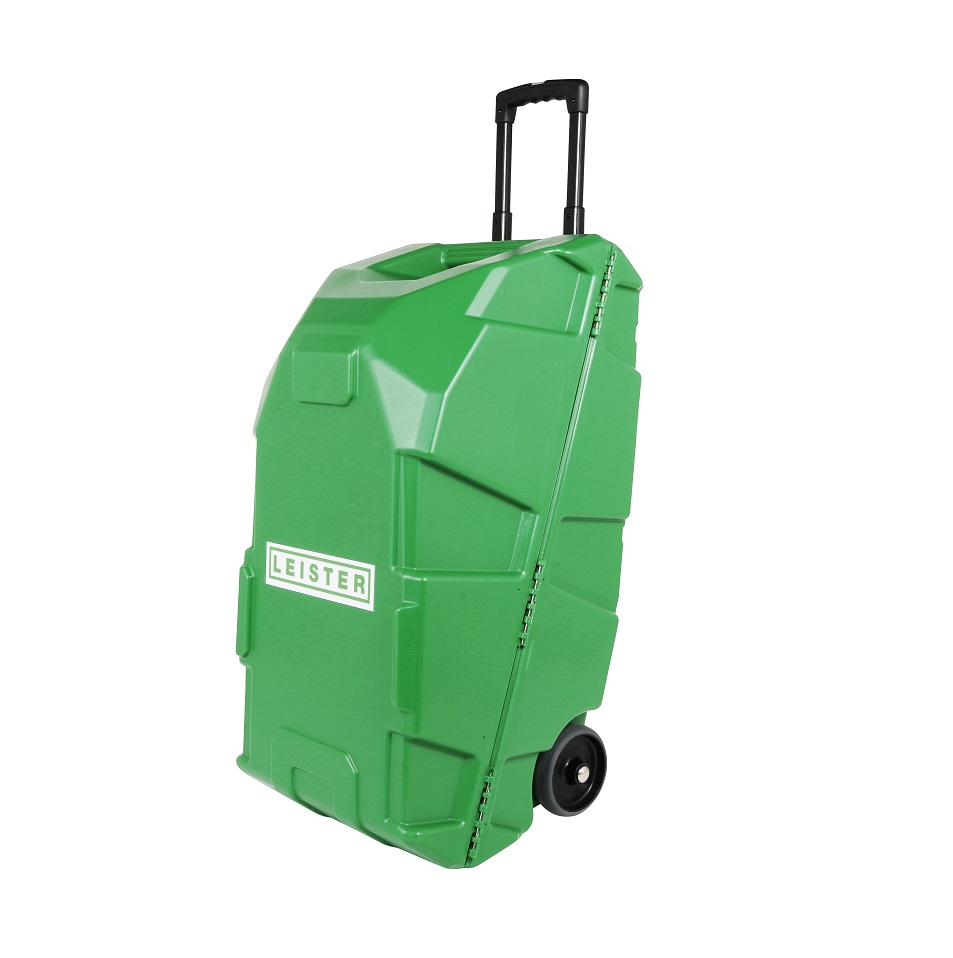

This unit ships in a Leister Molded Crate.
