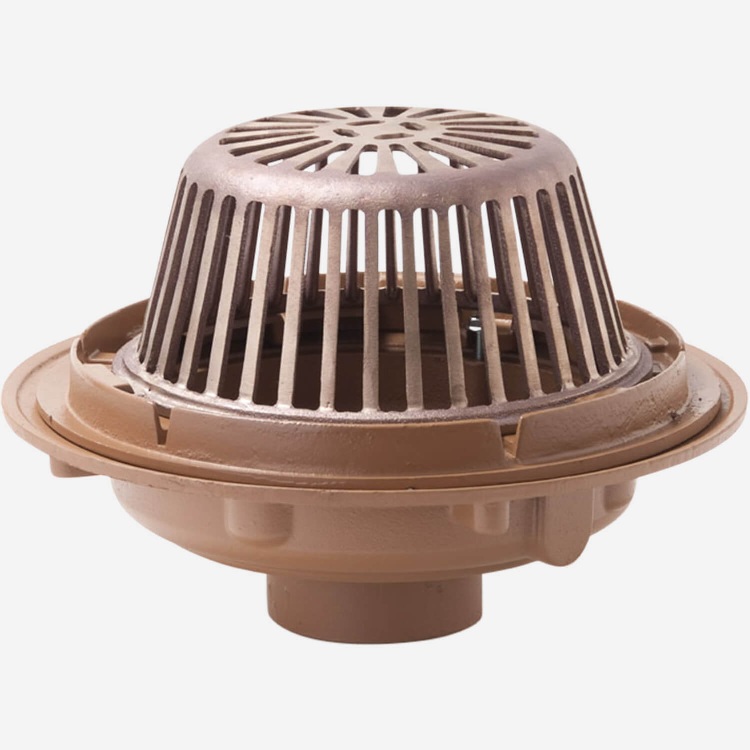

2" Smith 1010 Large Sump Drain

This Smith 1010 Drain is used in flat roof of any construction. Large low profile dome provides sufficient free area for quick drainage of rain water and protects the drain sump and connected piping from the intrusion of debris. Wide clamping surface holds flashing and roofing materials without puncturing.

Email This Post Email This Post

Specifications

Item #:

157612

Item Desc:

2" Smith 1010 Large Sump Drain

Item Desc 2:

w/11" Cast Iron Dome

Weight:

26.000

Price Um:

EA

Units/Pk:

1

Application:

Main Roof

Body Size:

15-1/4"

Bolt Pattern:

4.0

Bolt-to-Bolt Dist:

11"

Clamp Ring:

Yes

Color:

Brown

CR ID:

10-3/4"

CR OD:

12-1/2"

Installation:

New Installation

Manufacturer's P/N:

1010Y2-CID

Manufacturer:

Smith

Material:

Cast Iron

Model:

1010

Outlet Type:

No Hub

Pipe/Outlet Size:

2"

Type:

Large Sump Drain


Documents

1010-Spec-Sheet.pdf
