854sn

4" Frank Side Outlet Drain

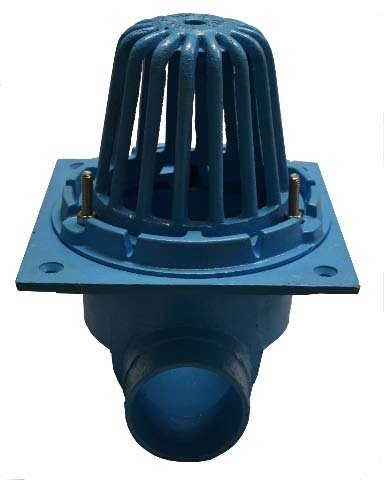

8-1/2" Series Frank Pattern Cast Iron Drain.  Side Outlet, no hub small body drain.  Flange is 8-1/2" wide.  Basin is 6-1/2" wide and 5" deep.  Dome is 6" high.  NOTE:  One Image shows drain from the front.  The second Image shows drain from side.

Email This Post Email This Post

Specifications

Item #:

157254

Item Desc:

4" Frank Side Outlet Drain

Item Desc 2:

w/8" Cast Iron Dome

Weight:

18.000

Price Um:

EA

Units/Pk:

1

Application:

Small Area

Body Size:

8-1/2"

Bolt Pattern:

3.0

Bolt-to-Bolt Dist:

5-3/4"

Clamp Ring:

Yes

Color:

Baby Blue

CR ID:

5-3/4"

CR OD:

7-1/4"

Installation:

New Installation

Manufacturer's P/N:

854SN

Manufacturer:

Frank Pattern

Material:

Cast Iron

Model:

8-1/2 Series

Outlet Type:

No Hub

Pipe/Outlet Size:

4"

Type:

Side Outlet Drain


Documents

853SN-Spec-Sheet.pdf
